MFC1 Serum/Serum2 Profile Guide

Setting up the MFC1 follows slightly different steps and file locations depending on if you are running Serum or Serum 2.

Loading MFC1 Profile for Serum/Serum 2

Serum 2 has 6 Macro slots while Serum 1 only has 3. For Serum we have provided two different mfc profiles. The attached Serum (Cycle Presets + Macro 1-4).mfc1 profile, controls macros 1-4 in serum/serum 2 after setup and cycles presets (after changing serum/serum 2's Prefs.json). The attached Serum 2 (All Macros).mfc1 profile controls all 6 macros on serum 2.

Load your selected profile onto your MFC using Load profile in the Jamstik Creator.

Copying MFC MIDI Map to Serum Presets folder

Serum 1

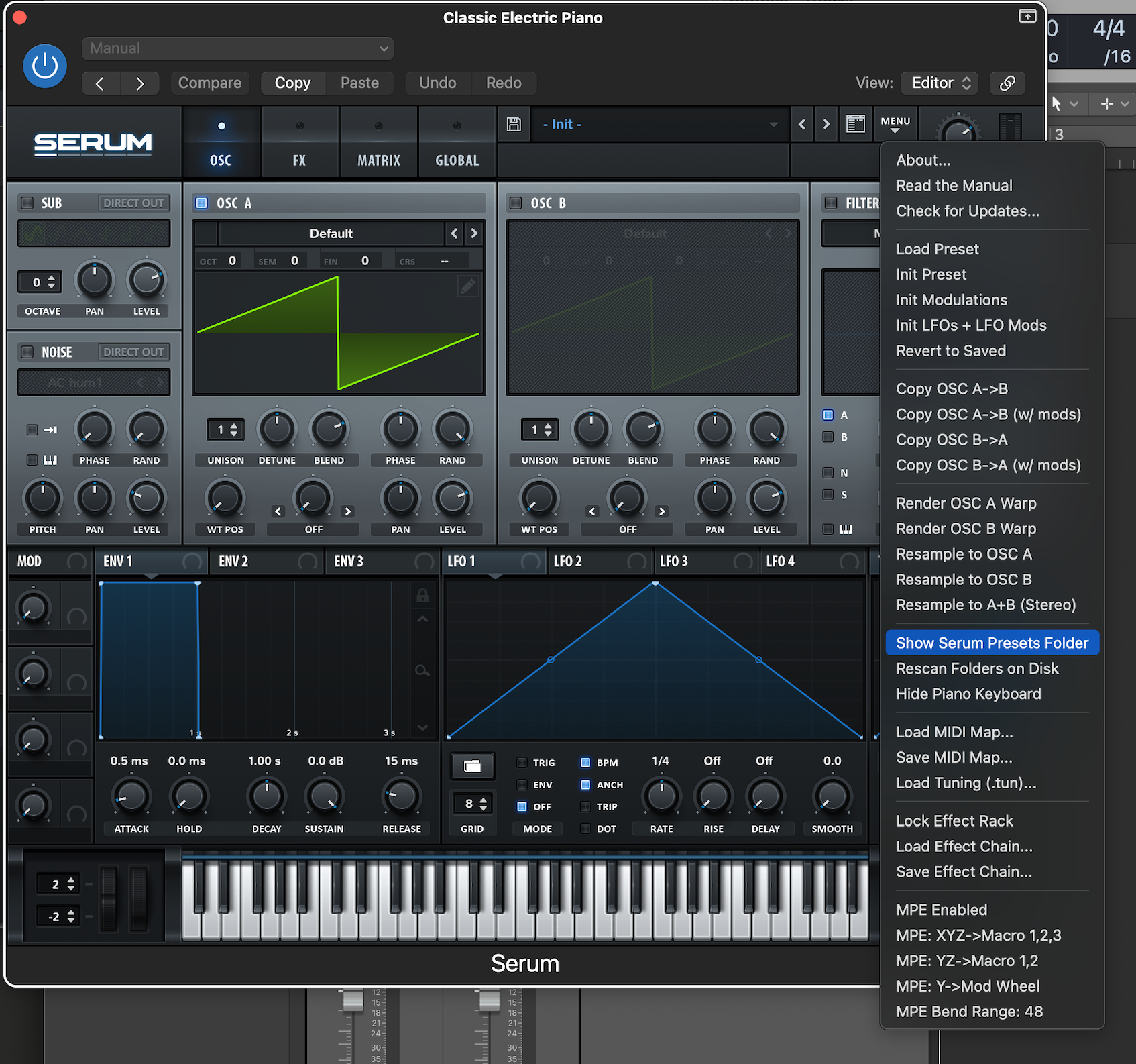

1. To control macros with the MFC1, first go to serum, click menu, and then Show Serum Presets Folder.

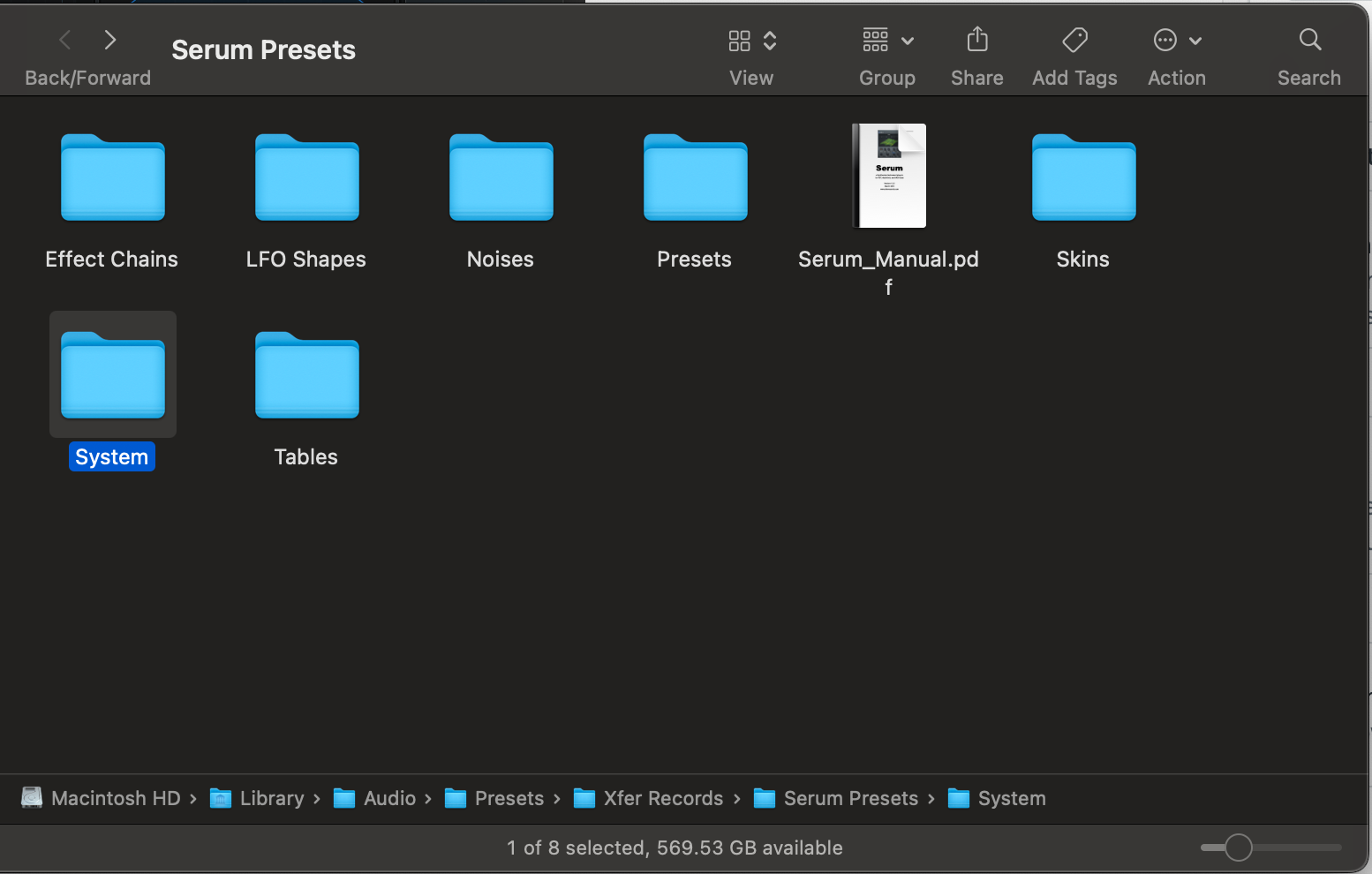

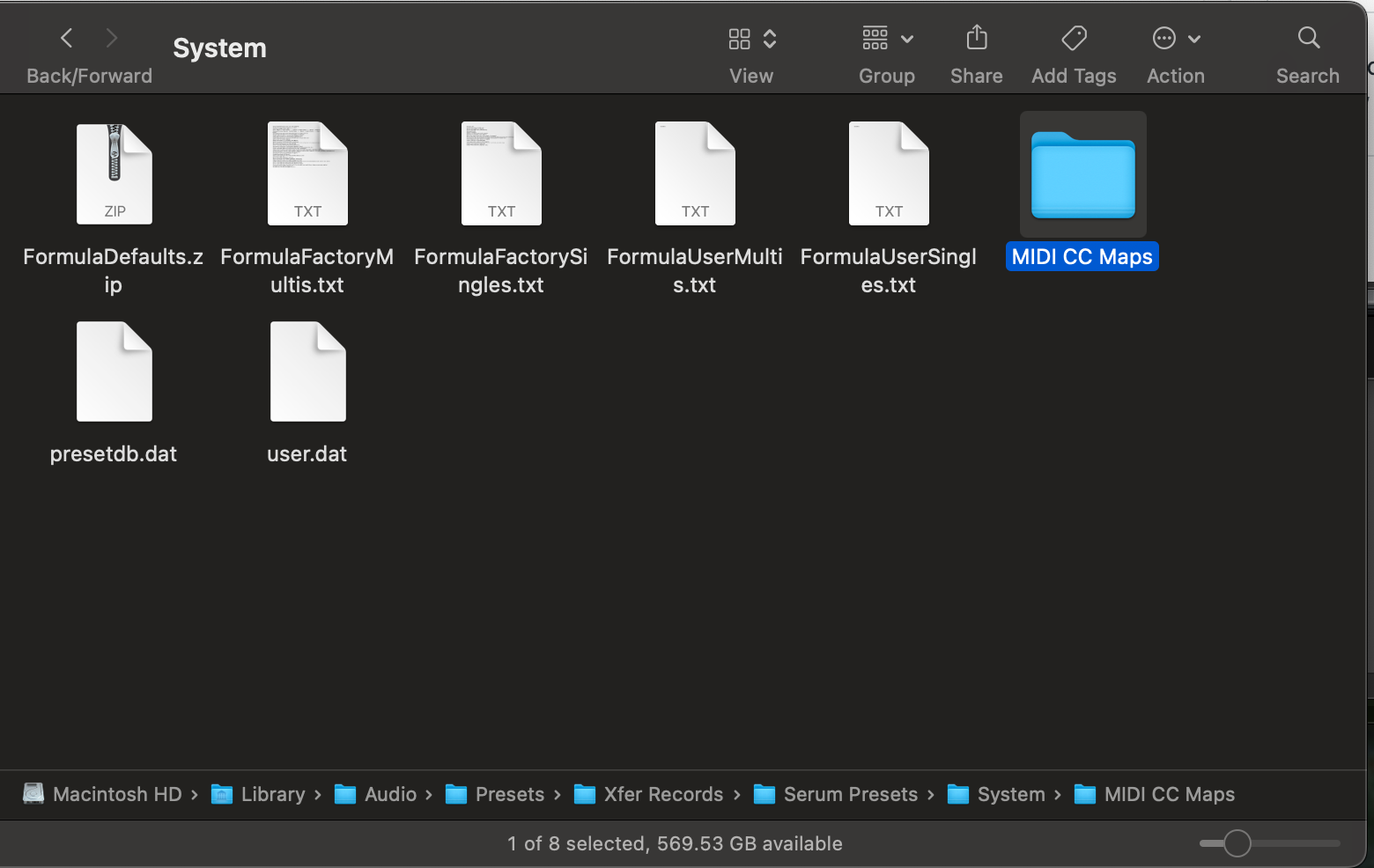

2. Open System--> MIDI CC Maps in the Serum Presets folder

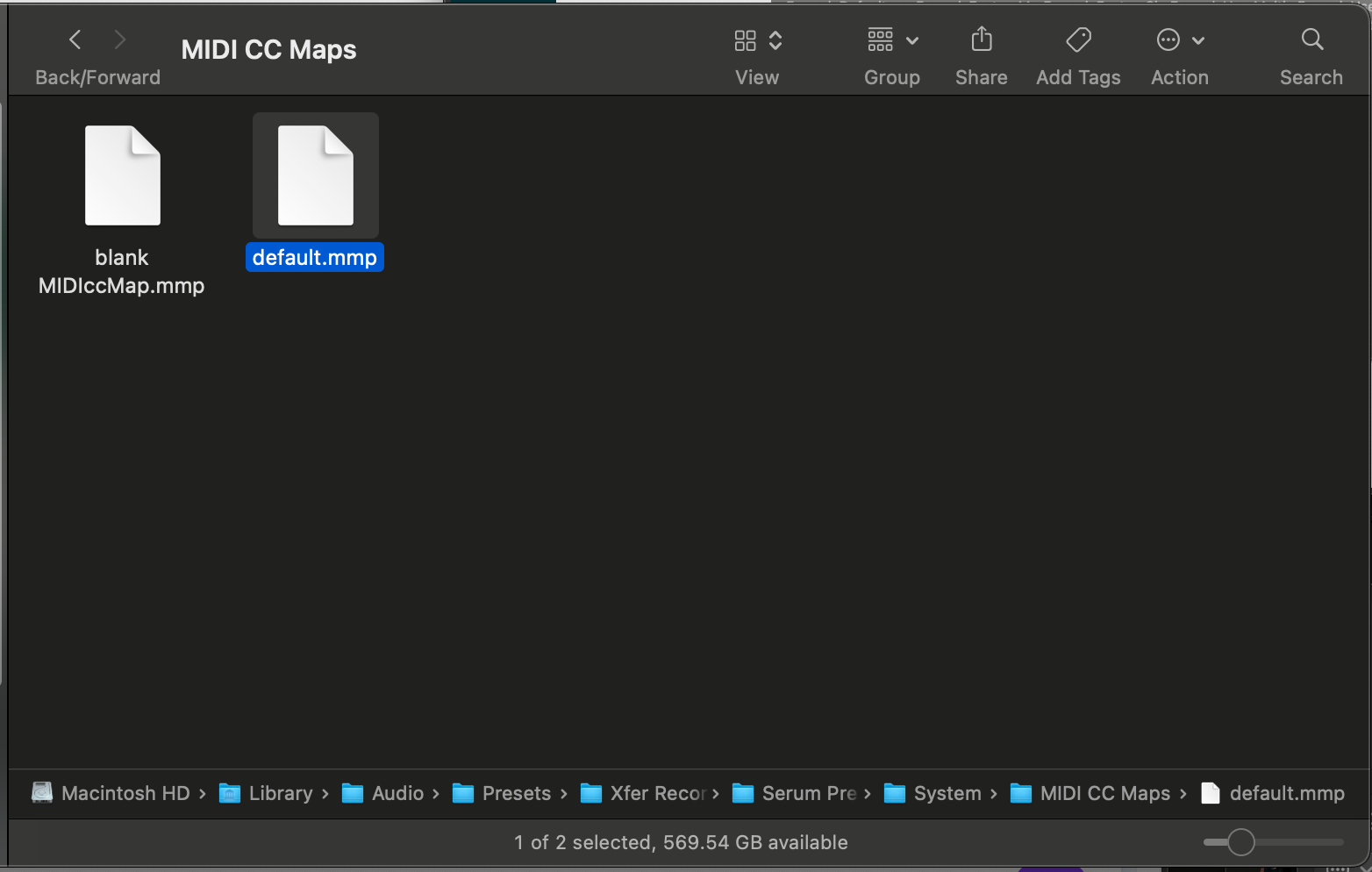

3. Copy the attached default.mmp file to the MIDI CC Maps folder and restart Serum. Serum should now load this MIDI map by default and you can control the Macro knobs with the MFC's encoders. To cycle through presets follow the steps in Cycling Presets In Serum with the MFC

Serum 2

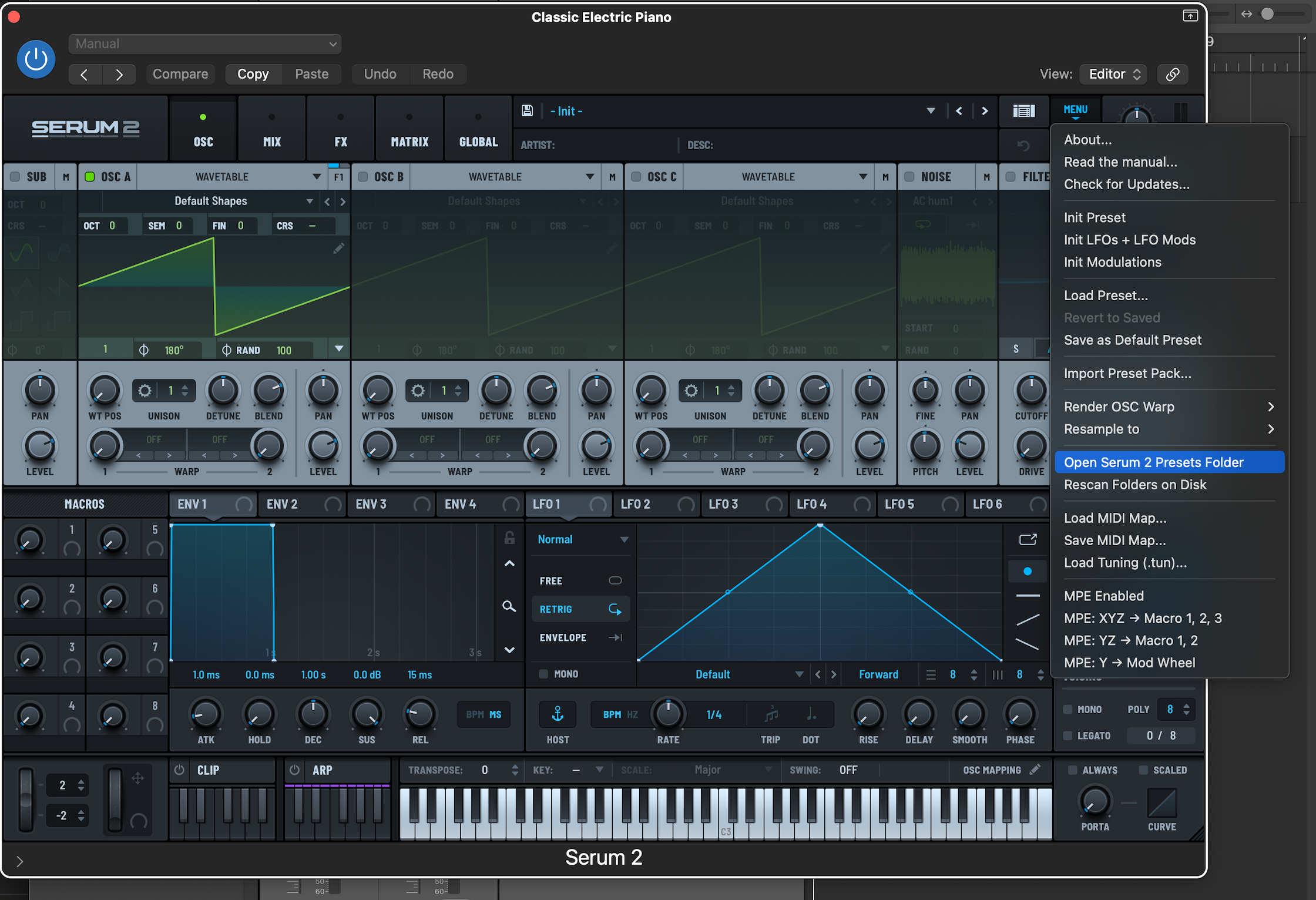

1. To control macros with the MFC1, first go to Serum 2, click menu, and then Open Serum 2 Presets Folder.

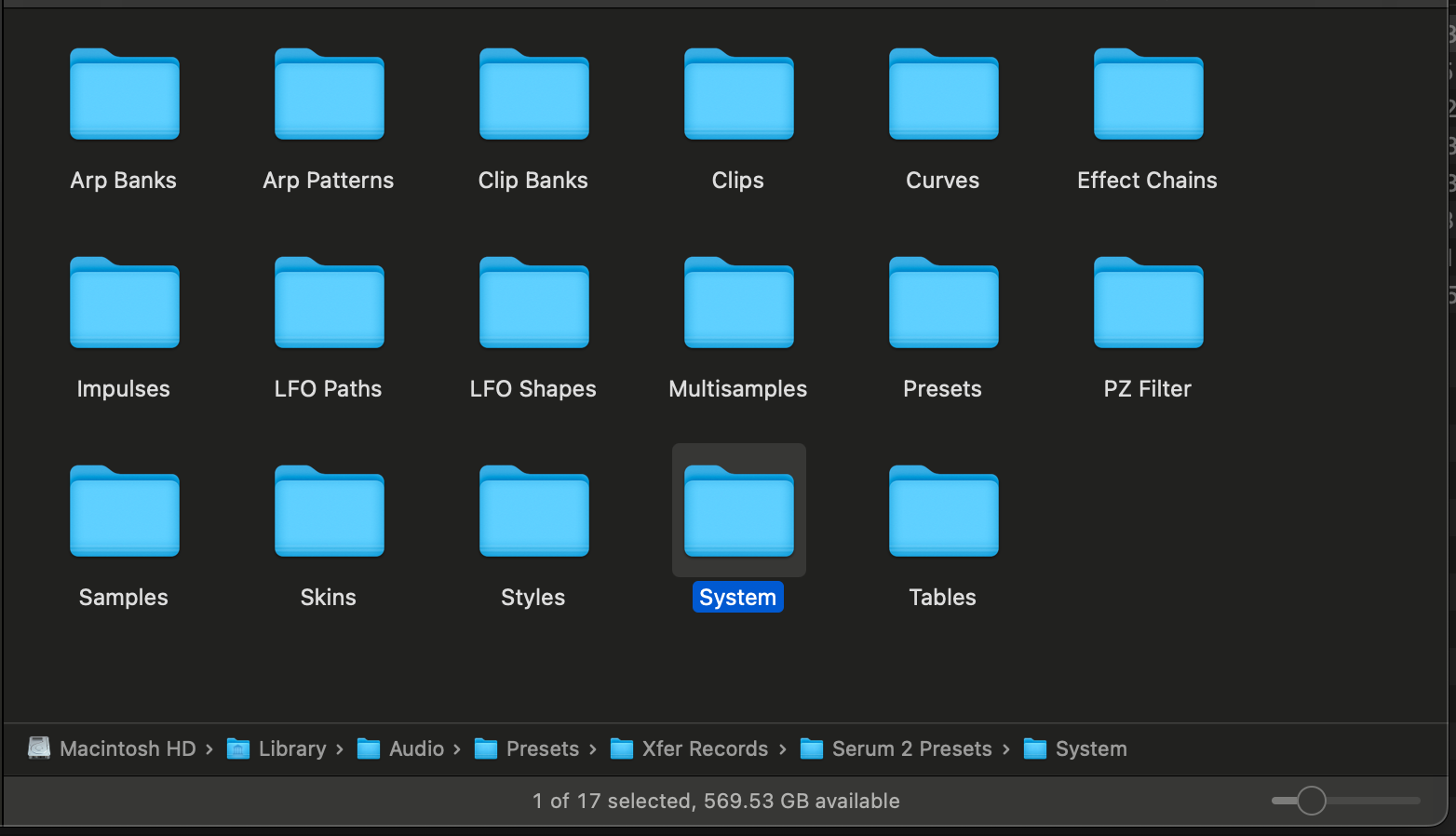

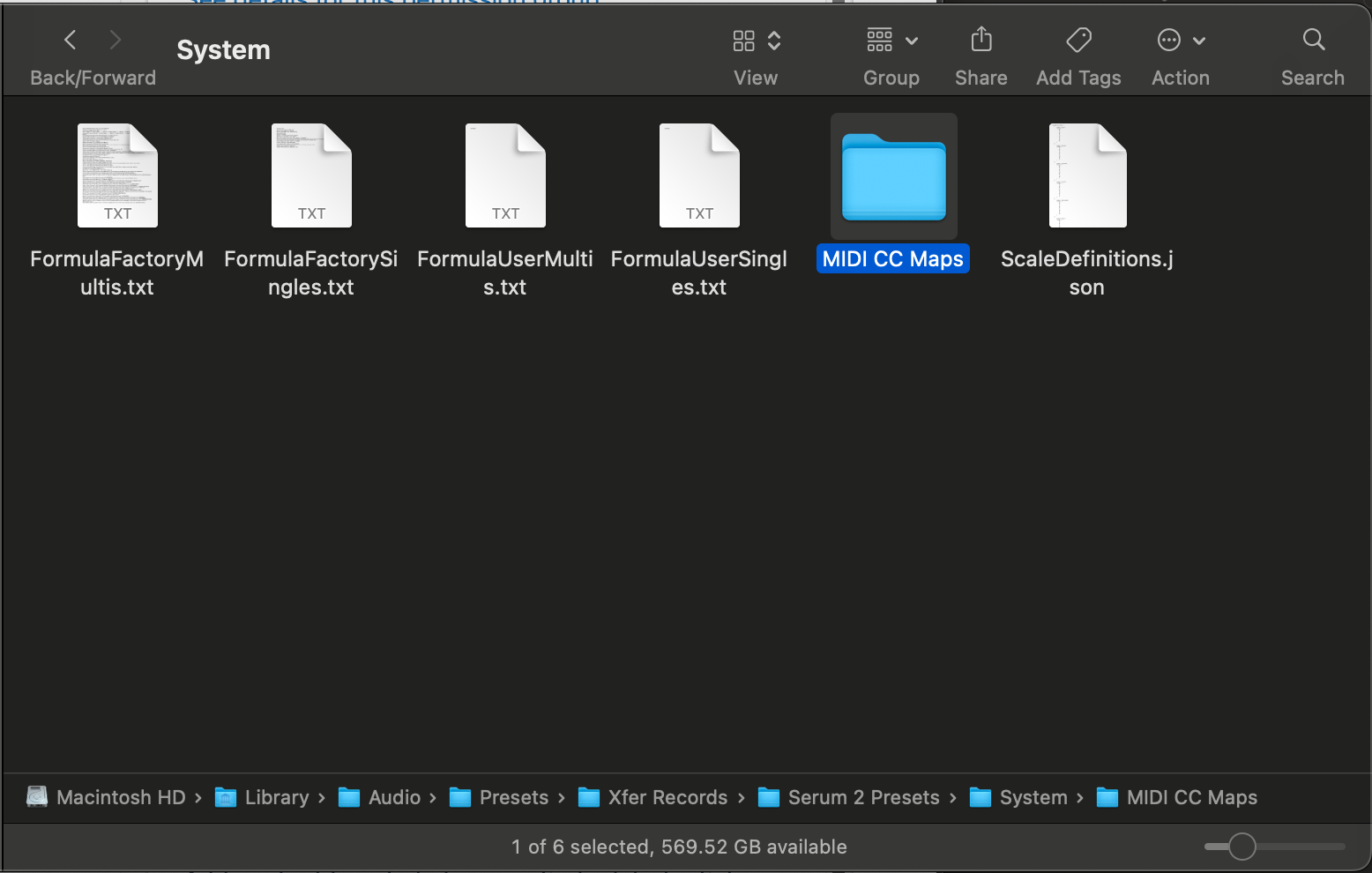

2. Open System--> MIDI CC Maps in the Serum Presets folder

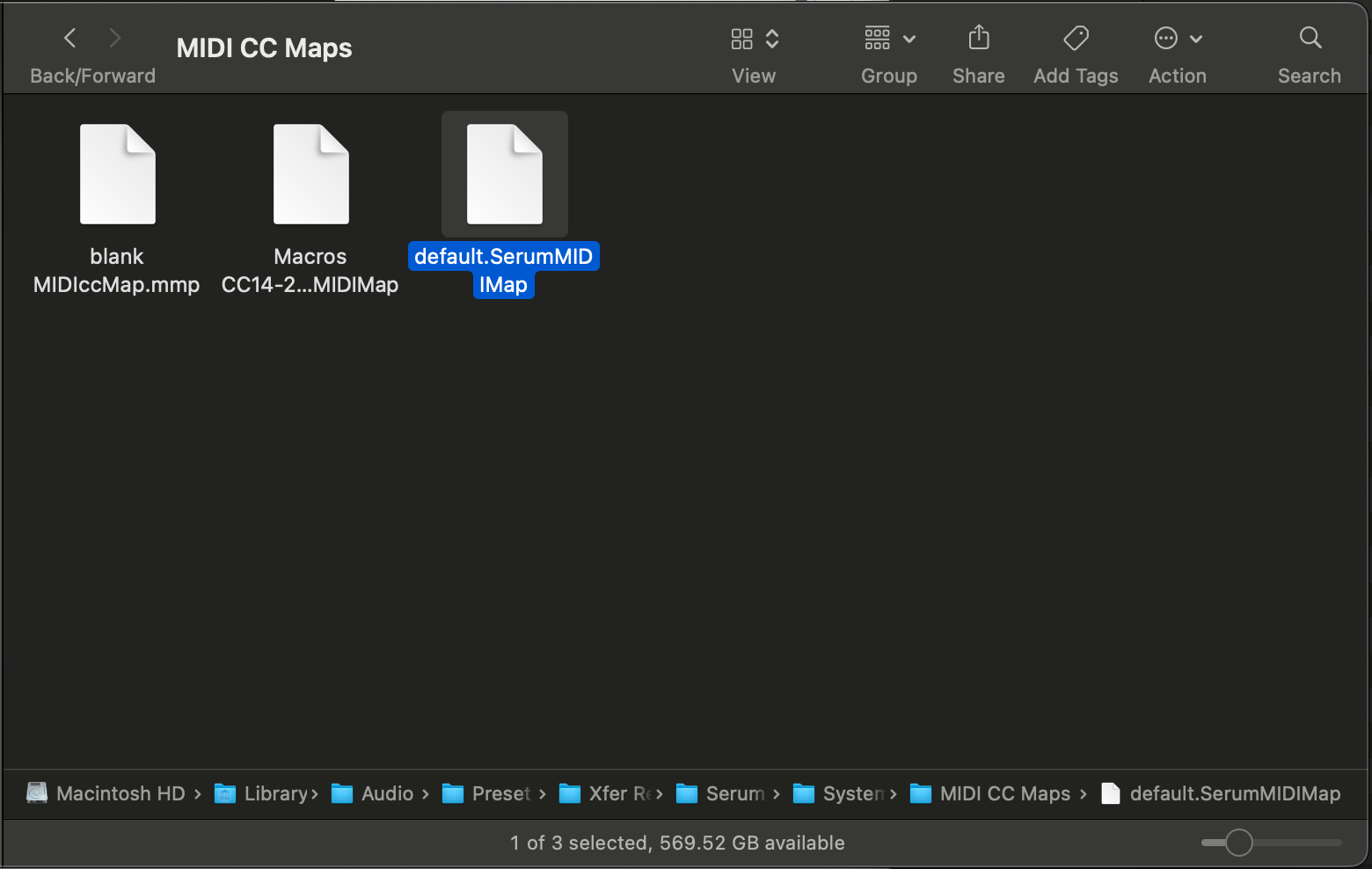

3. Copy the attached default.SerumMIDIMap file to the MIDI CC Maps folder and restart Serum. Serum should now load this MIDI map by default and you can control the Macro knobs with the MFC's encoders. To cycle through presets follow the steps in Cycling Presets In Serum with the MFC

Cycling Presets In Serum with the MFC

Serum

To allow cycling presets with the MFC, we need to edit values the SerumPrefs.json file.

On Windows, this file is found in %APPDATA%/Xfer/Serum or C:/Users/YOURUSERNAME/AppData/Roaming/Xfer/Serum - You can copy %APPDATA%/Xfer/Serum into windows explorer to navigate directly to the folder.

On Mac, this file is found in ~/Library/Preferences/ or Macintosh HD/Users/YOURUSERNAME/Library/Preferences - You can open Finder, Go to folder with keyboard shortcut Command+Shift+G and paste ~/Library/Preferences/ to navigate directly to the folder.

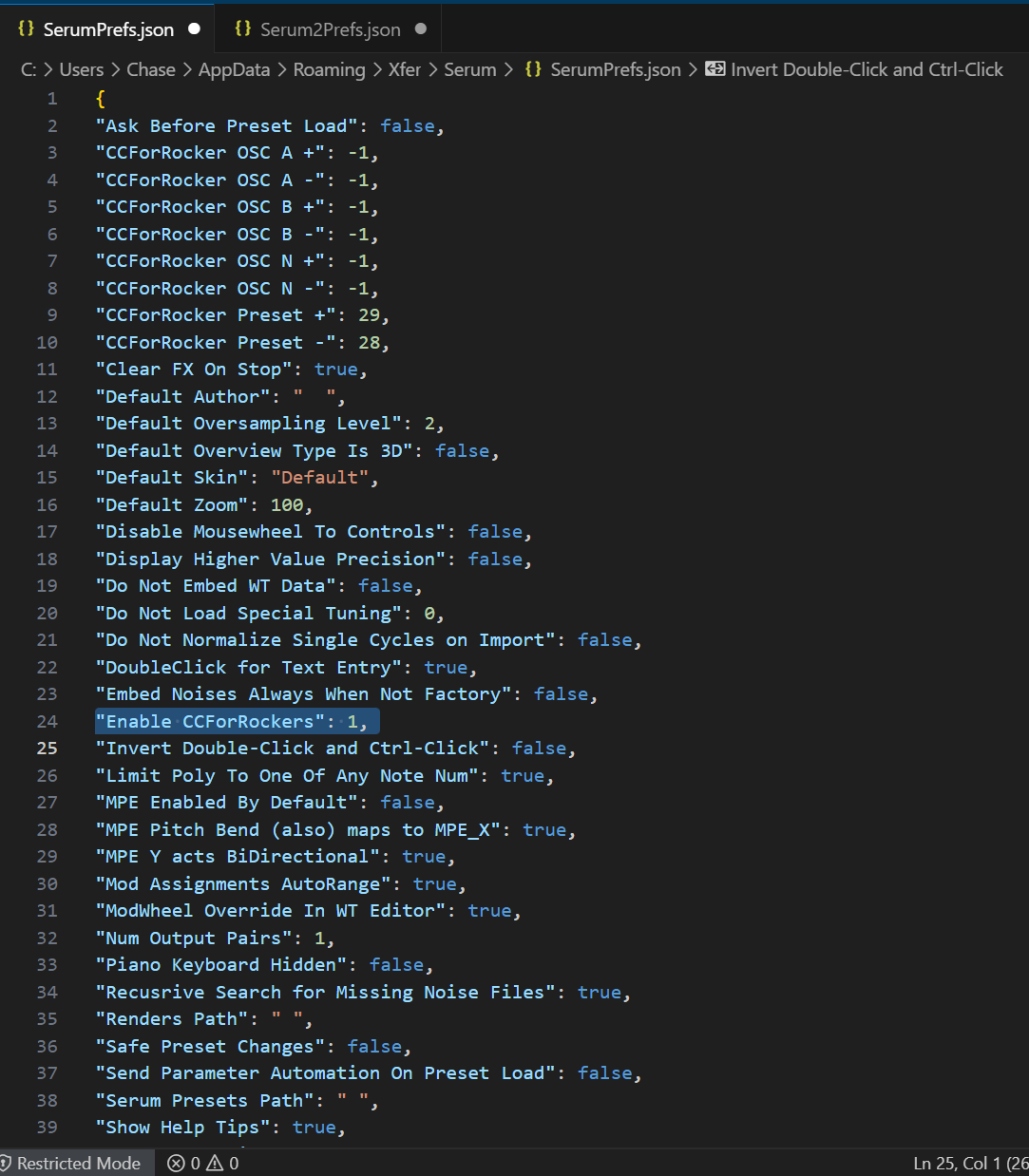

In this folder find the SerumPrefs.json file and open with notepad on windows or textedit on mac.

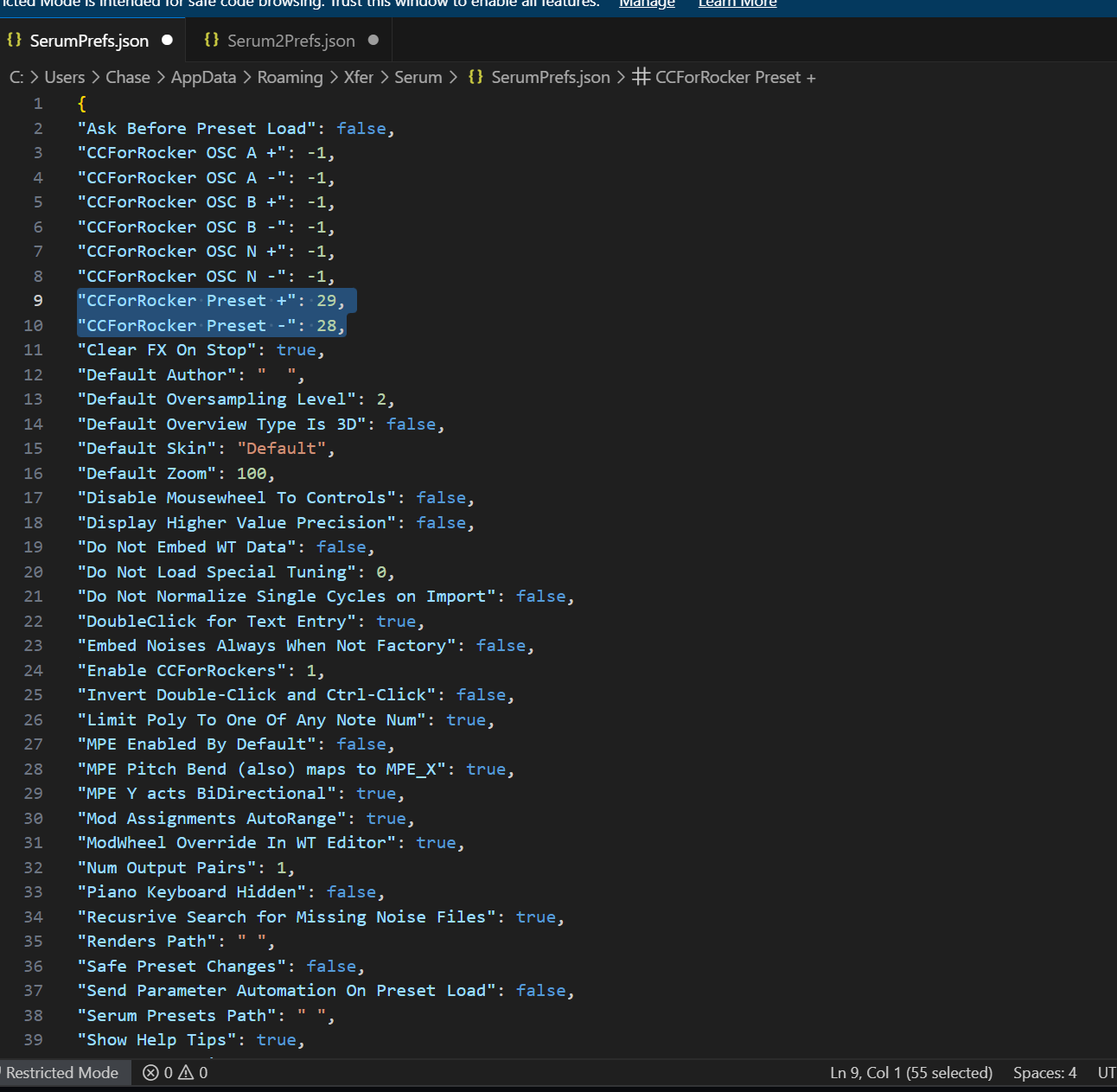

Edit the file and find the lines in your document and change the numbers after the : to match the screenshots and listings below:

"CCForRocker Preset +": -1,
"CCForRocker Preset -": 28,

"Enable CCForRockers": 1,

Serum 2

To allow cycling presets with the MFC, we need to edit values the Serum2Prefs.json file.

On Windows, this file is found in %APPDATA%/Xfer/Serum 2 or C:/Users/YOURUSERNAME/AppData/Roaming/Xfer/Serum 2 - You can copy %APPDATA%/Xfer/Serum 2 into windows explorer to navigate directly to the folder.

On Mac, this file is found in ~/Library/Preferences/ or Macintosh HD/Users/YOURUSERNAME/Library/Preferences - You can open Finder, Go to folder with keyboard shortcut Command+Shift+G and paste ~/Library/Preferences/ to navigate directly to the folder.

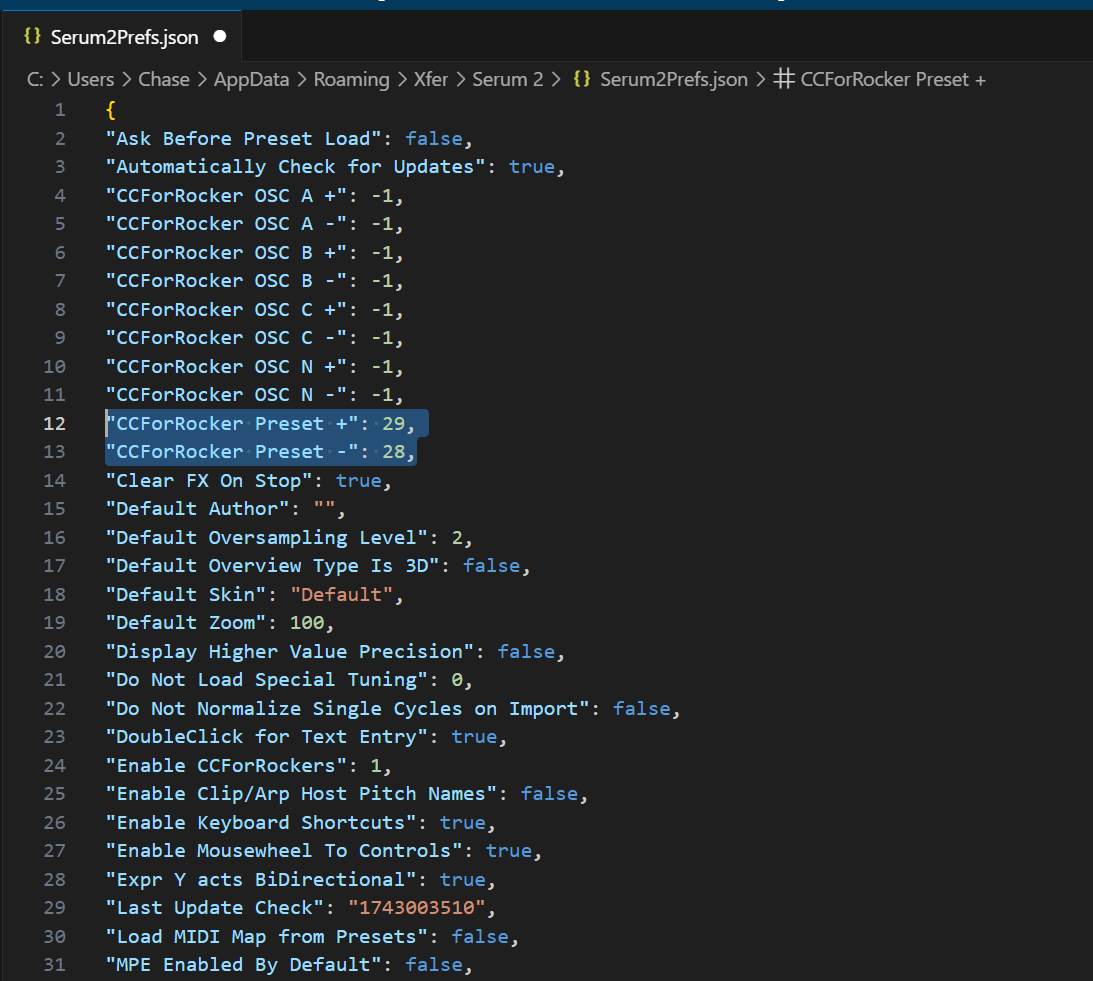

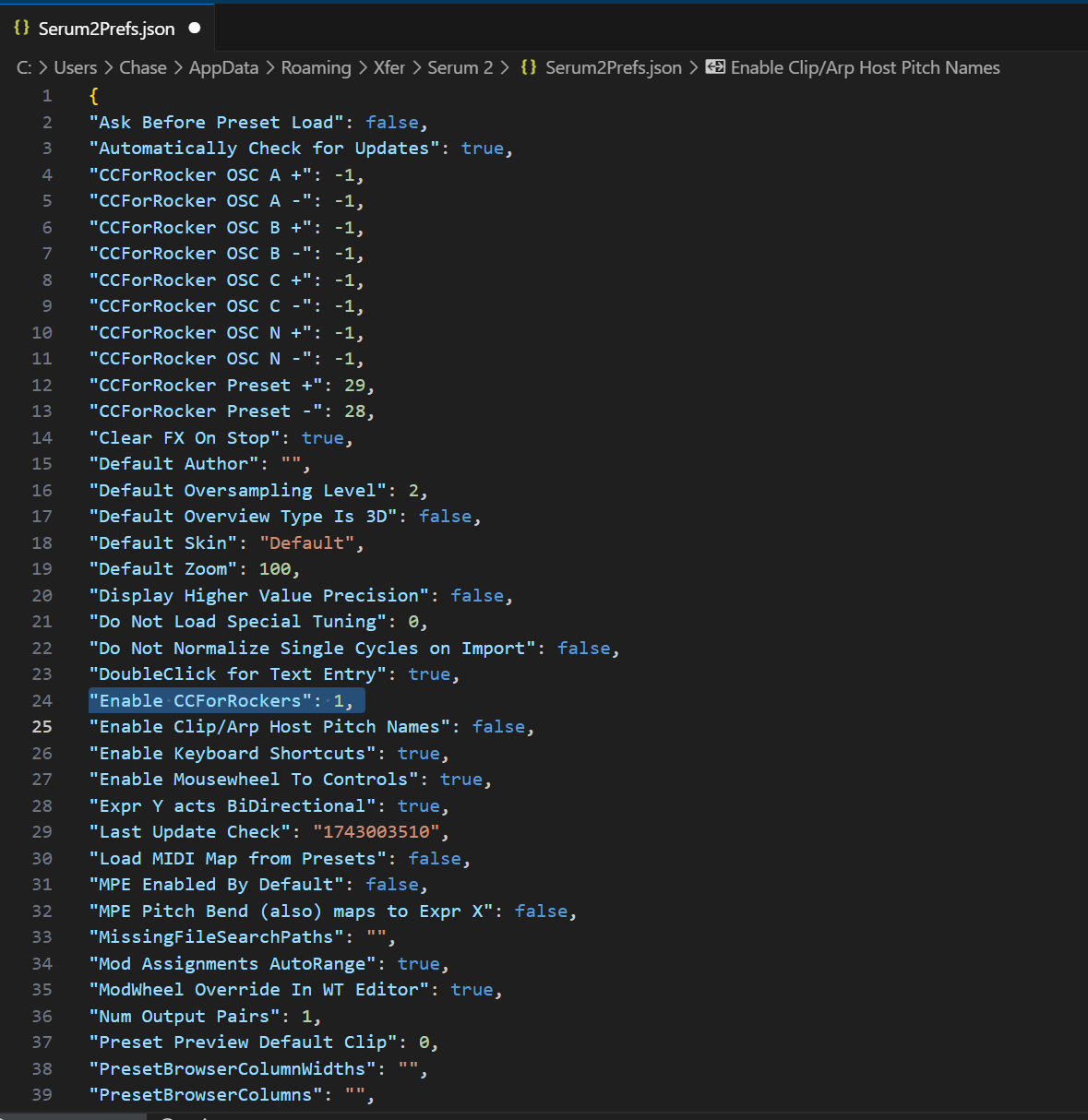

In this folder find the Serum2Prefs.json file and open with notepad on windows or textedit on mac.

Edit the file and find the lines in your document and change the numbers after the : to match the screenshots and listings below:

"CCForRocker Preset +": -1,
"CCForRocker Preset -": 28,

"Enable CCForRockers": 1,
