MFC1 Kontrol/Native Instruments Profile Guide

This guide is for Komplete Kontrol but other Native Instruments products may follow similar steps.

1. You may use any MIDI CC profile to assign to Kontrol or other Native Instruments parameters. In this guide we are using the Kontrol.mfc1 profile attached on this page. Load this profile onto your MFC using the Jamstik Creator's Load Profile function in Device Settings.

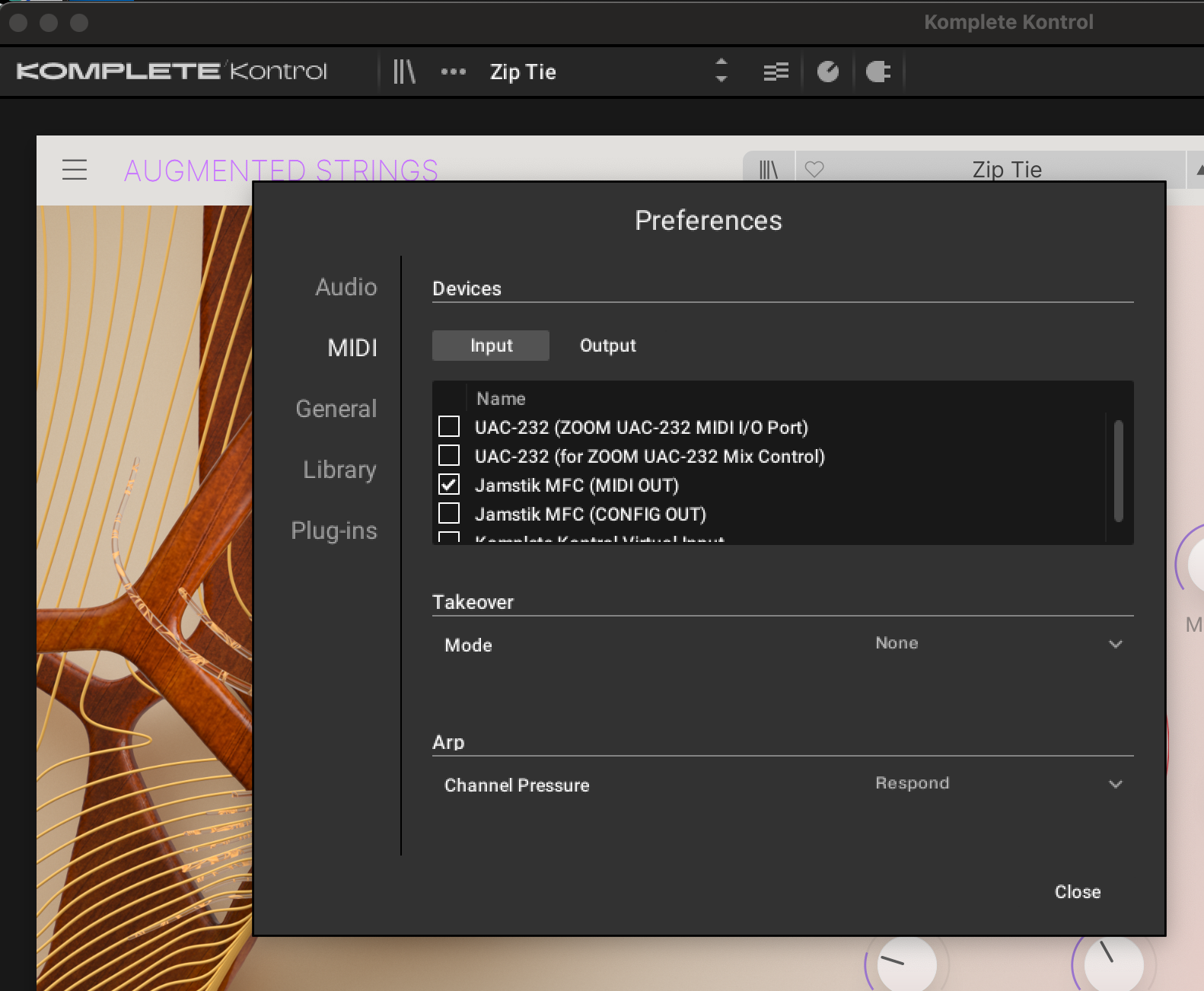

2. To use the MFC1 Profile with Komplete Kontrol, first open Komplete Kontrol and make sure the MFC1 is enabled as a MIDI Device. (... | Edit | Preferences | MIDI)

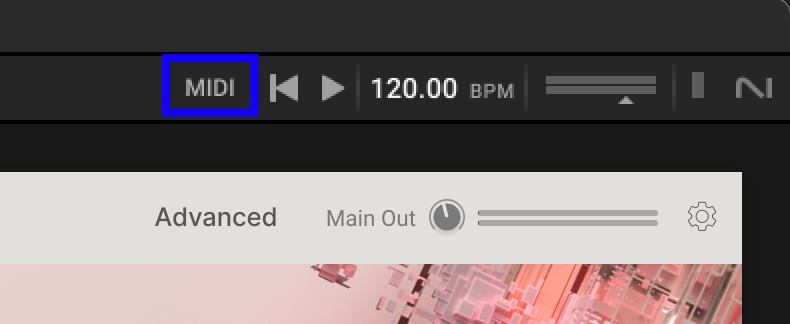

3. Next Click on MIDI in the top left corner

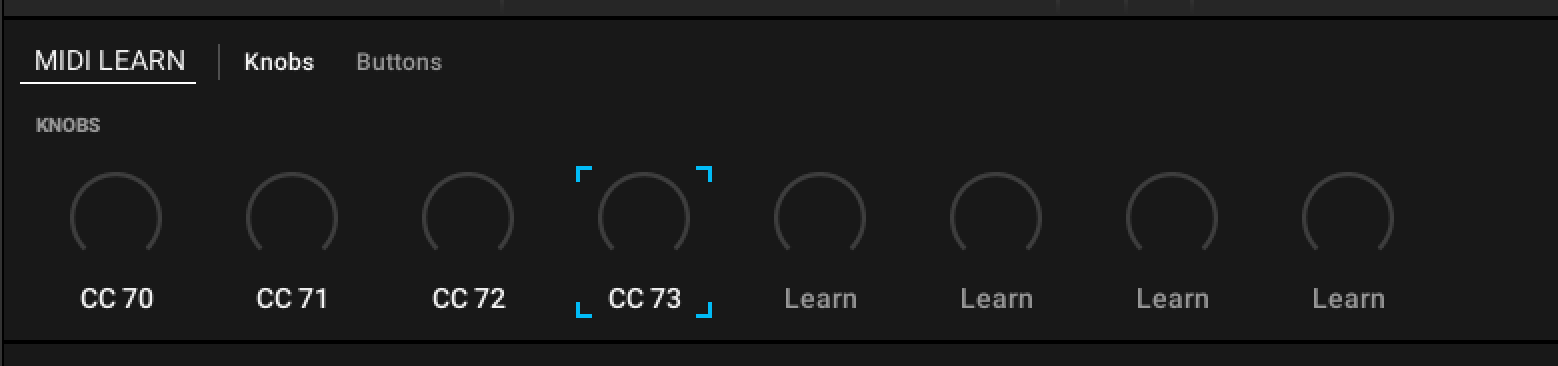

4. Make sure you are on the Kontrol MFC1 Profile on your MFC and then click the first knob onscreen in Kontrol and click on the first knob and then move knob 1 on your connected MFC1. Do this for the first three knobs in order. You may also tap footswitch B for knob 4 and it will act as a min/max switch for that value in software instruments. Mod wheel should be detected by most software instruments by default but you can assign mod wheel to one of the knobs if you prefer.

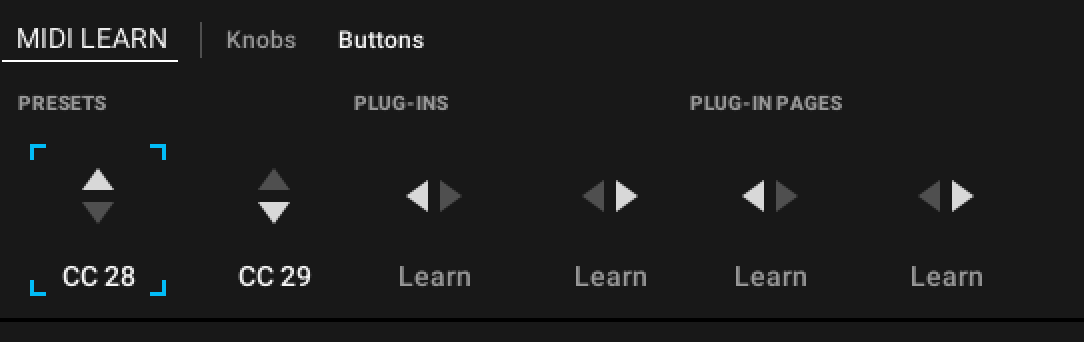

5. Now switch to the buttons tab. Click on the Presets up arrow and press footswitch A. Then click on the down arrow and press footswitch B.

6. Now click the MIDI button in the top right again to close the MIDI mapping menu and the MFC1 should now control the knobs in Kontrol and you can cycle presets with the A and C footswitches.
